Detail Baby Roller Single Drum MASTERPAC SVR58H

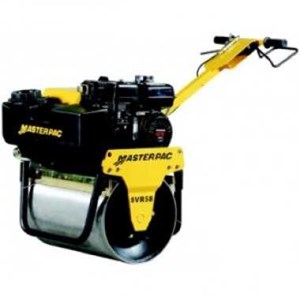

Baby Roller MASTERPAC SVR58H
Single Drum Vibratory Roller with Engine Honda GX160
Features Baby Roller MASTERPAC SVR58H
DEADMAN CONTROL and reversing protection for maximum operator safety.
Easy reach controls for operator comfort.
Ergonomically design height-adjustable handle for operator comfort and simplified transport.
Self-cleaning scrapers prevent the buildup of dirt.
Beveled drum edge eliminates markings on surface.
Side and curb clearance allow for a closest approach to pavement, wall, curb and other
Compact design for easy handling in confined areas.
Thick drum shells for longer drum life.
Large corrosion-free water tank feature in easily removable for filling or cleaning.
Fully hydraulic system provides infinitely variable working speed for travel and vibration, eliminating the need for regular periodic adjustments and changes compared to chain driven rollers require.
Robust design sealed belt cover for clutch and belt protection.
Electric starter is as option for Lombardini diesel engine.
Built-in cooling fan is designed for longer life and continuous operation.
SPESIFICATION Baby Roller Single Drum MASTERPAC SVR58H
Model SVR58H SVR58R
Engine Type Honda GX160 Robin EX17
HorsePower kw( hp) 4.0( 5.5) 4.2( 5.7)
Weight kg( lb) 185( 408)
Drum Diameter mm( in) 580× D400( 23× D16)
Centrifugal force kN 10
Static Linear Force N/ cm 28.5
Frequency kw vpm( Hz) 4560( 76)
Travel Speed km/ h 0-1.5
Water tank capacity L 15
